Chair Gas Cylinder Sinking? What to Look For Before You Buy

If your office chair sinks to the floor no matter how many times you pump the lever, the culprit is almost always the chair gas cylinder. That pneumatic piston under the seat is a wear item—and when it fails, the fix is a straightforward replacement. But not all replacements are compatible. The three numbers that matter are diameter, stroke length, and weight class. Get those right and you'll be back to a stable chair for $20–40. Get them wrong and you'll be stuck with a cylinder that doesn't fit or collapses under your weight.

The good news: most chairs use one of two standard diameters, and replacements are cheap. The bad news: manufacturers love to bury those specs in tiny print, and many sellers don't list them at all. This guide gives you a practical measurement routine, a plain-language breakdown of class ratings, and a clear recommendation for when to spend $20 versus $40. If you're also adjusting desk height, pair a proper seat with our ergonomic standing desk setup guide so your screen and chair align.

Sinking office chair with exposed gas cylinder — The gas cylinder is the pneumatic piston that controls seat height.

What a chair gas cylinder does and why it fails

A chair gas cylinder is a sealed piston charged with nitrogen gas and hydraulic fluid. When you raise the chair, the piston extends, pushing the seat up. When you lower it, a valve releases compressed gas into a reservoir, letting the piston sink. The "class" rating tells you how much dynamic load the piston can handle before it either bottoms out or leaks.

Cylinders fail for three reasons: the seal wears out, the rod gets scored from debris, or the cylinder simply loses gas over time. The result is the same—the chair slowly sinks or drops with a wheeze when you sit down. No amount of spray lubricant or oil will fix a leaky seal. It's a sealed unit; you replace it.

The repair is actually mechanical: pop the base off, pull the cylinder from the seat plate, measure it, and slide in a new one. Most cylinders use a standard taper that clips into a 50mm or 60mm base. That's why a $20 replacement can fix a $300 chair. The physical process of removing a stubborn cylinder is where most people get frustrated—which is exactly why some replacement kits include a removal tool, a topic we'll get to in the price tier section.

Measuring your chair: diameter, stroke, and class

Before you buy a replacement, you need three numbers.

Diameter. This is the outside width of the cylinder tube. Measure with a caliper or a ruler at the widest point. 50mm (about 2 inches) is the most common for budget and mid-range office chairs. 60mm (about 2.36 inches) is typical for heavy-duty or ergonomic chairs with a larger base. Some premium chairs use non-standard sizes, but those are rare—so measure carefully.

Stroke length. This is how far the piston extends from the cylinder body. A 5-inch stroke means the seat can raise about 5 inches above its lowest point. Most chairs need between 4 and 6 inches. If you buy too short, the seat won't go high enough; too long, and your knees will be higher than your hips, which is a fast track to back pain. For a full ergonomic setup, make sure your seat height aligns with your desk—if you're spotting other issues, our standing desk dangers guide highlights common alignment mistakes.

Class rating. This is the weight capacity. A Class 3 cylinder is rated for around 220–300 lbs. Class 4 is typically 300–500 lbs, but some manufacturers push them to 1,000 lbs static load. The three replacements we'll compare below all claim Class 4 and 1,000 lbs. That's overkill for most people, but the extra margin means the seal works less hard, so it should last longer.

Measuring the diameter of a chair gas cylinder — Measure the cylinder tube, not the chair base, to get the diameter right.

How to measure in four steps

Remove the base and seat from the chair. Sometimes you can avoid full disassembly by just tipping the chair, but to measure the cylinder properly, you'll want it exposed.
Measure the diameter with a caliper at the top, middle, and bottom. The outside diameter should be consistent; if it tapers, use the largest point.
Measure the stroke by extending the piston fully, then measuring from the top of the cylinder body to the top of the piston rod. If it's compressed, measure the total length and subtract the body length.
Check the retaining clip (if present) under the base. This metal ring will need to be removed before you pull the cylinder.

If your chair is already broken and you can't easily measure, you can sometimes find the model number on a sticker under the seat and look up the spec online. But for most chairs, a ruler and a few minutes beats an hour of internet archaeology.

The price tiers: what $20 gets you vs. what $40 gets you

Most replacement cylinders hover between $20 and $40. Here's what changes as you spend more.

Budget tier ($20–25): These are bare-bones cylinders. The Omyoffice 5.5" Class 4 unit at $22.99 is a typical example. It's a straight-up replacement: no removal tool, no fancy coating, just the piston. Reviewers on long-term threads note that it fits most 50mm bases and holds up for a couple of years. The downside: you'll need your own tools to extract the old cylinder. That's not hard—a pipe wrench or a rubber mallet does the job—but it's an extra step.

Mid-range ($25–35): You might get a slightly better rod surface finish or a grease cartridge included, but the spec sheet is usually identical. The marketing words "heavy duty" or "premium" don't change the physics.

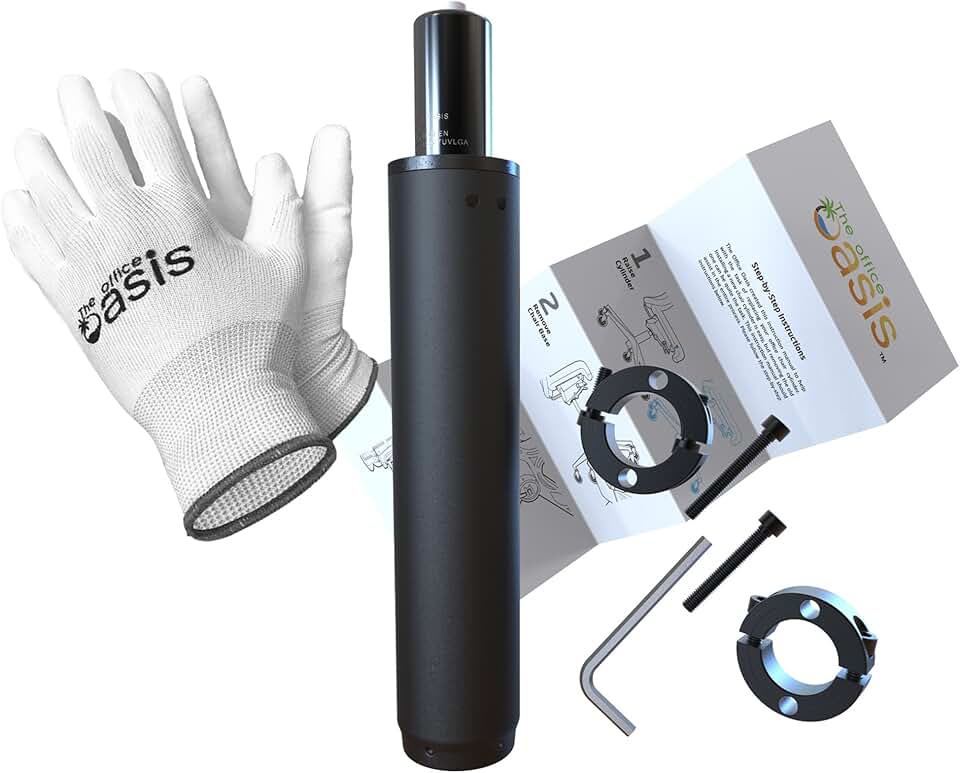

Premium tier ($40+): The main upgrade is convenience. The Office Chair Cylinder Replacement with Removal Tool (As Seen On PBS) at $39.95 includes a removal tool that clamps onto the cylinder so you can pull it out without damaging the chair base. That tool alone is worth $10–15 if you're replacing the cylinder in a chair that's been sitting for years and the old one is seized. Reviews consistently note that the tool makes extraction trivial, which is the most frustrating part of the job.

If you're on a tight budget and already own a pipe wrench, save $20 and buy the bare cylinder. If you've never done this repair before, or your chair has that corroded steel cylinder that's been in place since 2019, spend the extra for the kit. You'll thank yourself when the old one doesn't budge.

Comparison of budget and premium chair gas cylinders — The $20 cylinder works, but a $40 kit includes a removal tool.

Comparison table: three replacement cylinders worth your time

Model Price Stroke Class Weight Rating Best For Omyoffice 5.5" Gas Lift Cylinder $22.99 5.5" Class 4 1,000 lbs Budget-conscious buyers with standard 50mm bases Generic 5.9" Class 4 Cylinder $19.99 5.9" Class 4 1,000 lbs Minimal budget option, but verify the diameter Cylinder with Removal Tool $39.95 Not specified Heavy Duty Assumed Class 4 First-time replacers or seized cylinders

The generic listing at $19.99 doesn't specify stroke length in the title, but the seller lists it as 5.9". The Omyoffice unit is the safest pick for most chairs because its 5.5" stroke covers the standard 4–6" range. If you're not sure whether your chair uses a 50mm or 60mm base, take a measurement before ordering.

Common mistakes to avoid when replacing a chair gas cylinder

Mistake #1: Measuring the chair base instead of the cylinder. The cylinder's diameter is not the same as the base's opening. A 50mm cylinder fits into a 50mm base hole, but the base's outer diameter might be 200mm. Measure the cylinder itself.

Mistake #2: Ignoring the stroke length because "it's the same chair." Different models of the same chair line can use different strokes. A chair with a low seat height might need a 4-inch stroke; a high-raise version might need 6. Check the actual cylinder, not the chair's name.

Mistake #3: Buying a cylinder with a higher class rating to "be safe." A Class 4 cylinder is fine, but a Class 5 or "super duty" rated unit won't make your chair feel different, and the larger seal area can actually create more friction, making height adjustment stiffer. Stick to the class your chair was designed for.

Mistake #4: Trying to lubricate a leaky cylinder. The seal is inside the piston. Oil on the outside won't fix it. If your chair sinks, replace it.

Mistake #5: Not removing the snap ring or clip before pulling. Some bases have a retaining clip that holds the cylinder in place. If you don't remove it first, you'll crack the base. Look for a metal bar or c-clip under the base.

Who should buy a replacement cylinder vs. a whole new chair

Buy a replacement cylinder if: your chair's frame, seat foam, and mechanism are in good condition. If the cylinder is the only failure, a $25 replacement extends the chair's life by years. A quality chair that cost $300–500 is worth fixing. If you're also comparing posture alternatives like a kneeling chair, our kneeling chair benefits guide helps you decide if a different seating style fits your workflow.

Skip the replacement (buy a new chair) if: the chair is older than five years and has other issues—worn foam, broken armrests, a bent base. Or if the cylinder is a non-standard size that you can't find a match for. In those cases, the $250 you'd spend on a new budget ergonomic chair is a better investment than $40 on a part that doesn't fix the underlying problem.

There's also a niche case: if you're moving from a chair that's too low to a setup that needs more raise, a longer-stroke cylinder can sometimes do the job. But that's risky because the seat plate geometry and base taper must match exactly. For that, a full chair change is often simpler. If your desk itself is on the list of things that wobble, take a look at our desk wobbly fix guide to handle that at the same time.

What about gas cylinder safety?

One legitimate concern: cheap cylinders have occasionally been involved in explosive failures. That's why you should always look for a model that meets ANSI/BIFMA X5.1 criteria—that standard includes a cycling test that simulates years of use. Most major replacement brands specify compliance. The three cylinders mentioned here all list heavy-duty construction, but the Omyoffice listing specifically claims Class 4 and 1,000 lbs, which implies a robust build. When in doubt, spend an extra $5 for a model with clearly stated test compliance.

Bottom line: which cylinder should you buy?

For most people with a sinking chair, the Omyoffice 5.5" Class 4 cylinder at $22.99 is the smart buy. It has the stroke length that covers the common range, a class rating that suits any body weight up to 300 lbs, and the price is low enough that you won't feel the pain if it turns out your chair has a non-standard base.

If you're a first-time replacer or your chair is old enough that the cylinder is seized, pay the $39.95 for the kit with the removal tool. The tool saves you from an hour of wrestling with a pipe wrench and possibly damaging your chair's base.

Skip the $19.99 generic unless you've verified the exact diameter and stroke, because the listing is thin and the savings aren't worth the hassle of a return.

And if your chair has other problems, don't gold-plate it. Let the whole chair go and buy a new one that fits your body and your desk height. A replacement cylinder is a great fix when it's the only thing broken—but it's not a magic bullet for a chair that's been through the wringer.

Frequently Asked Questions

Why does my office chair keep sinking?

The gas cylinder inside the chair has lost pressure or the seal is worn out. It's a sealed unit, so the only fix is to replace the cylinder.

What size gas cylinder do I need for my chair?

Measure the diameter and stroke length of the old cylinder. Common diameters are 50mm and 60mm; stroke lengths range from 4 to 6 inches. Also check the class rating for weight capacity.

Can I use any gas cylinder replacement?

No. The diameter must match your chair base, and the stroke length must match your desired seat height range. Using a mismatched cylinder can cause instability or improper height.

Is it worth replacing the gas cylinder on an old chair?

If the chair frame and foam are in good condition, yes. A $20–40 replacement can extend a good chair's life for years. If the chair has other damage, a new chair may be more cost-effective.
